48V Battery Disconnect Switch 1211-32-4T

Heavy Duty Battery Switch with Lock-out
Feature Knob. With Cover For Panel Mount Use.

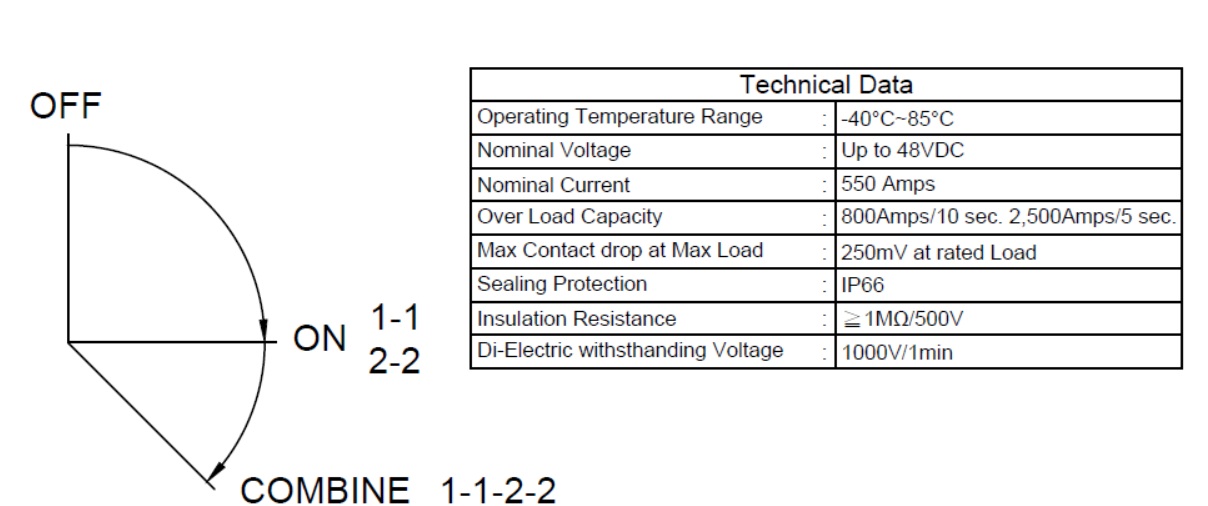

OFF- ON B1+ B2 Separated/ ON B1+B2 Parallel
12VDC 550Amps Continuous
800Amps Intermittent/10 sec.
2,500Amps Cranking/5 sec.
Max: 48VDC
Dimensions: 102*102*90mm
Terminal: M10*4pcs
